Home > Products > Threaded Rods > Refractory mullite ceramic parts threaded rods

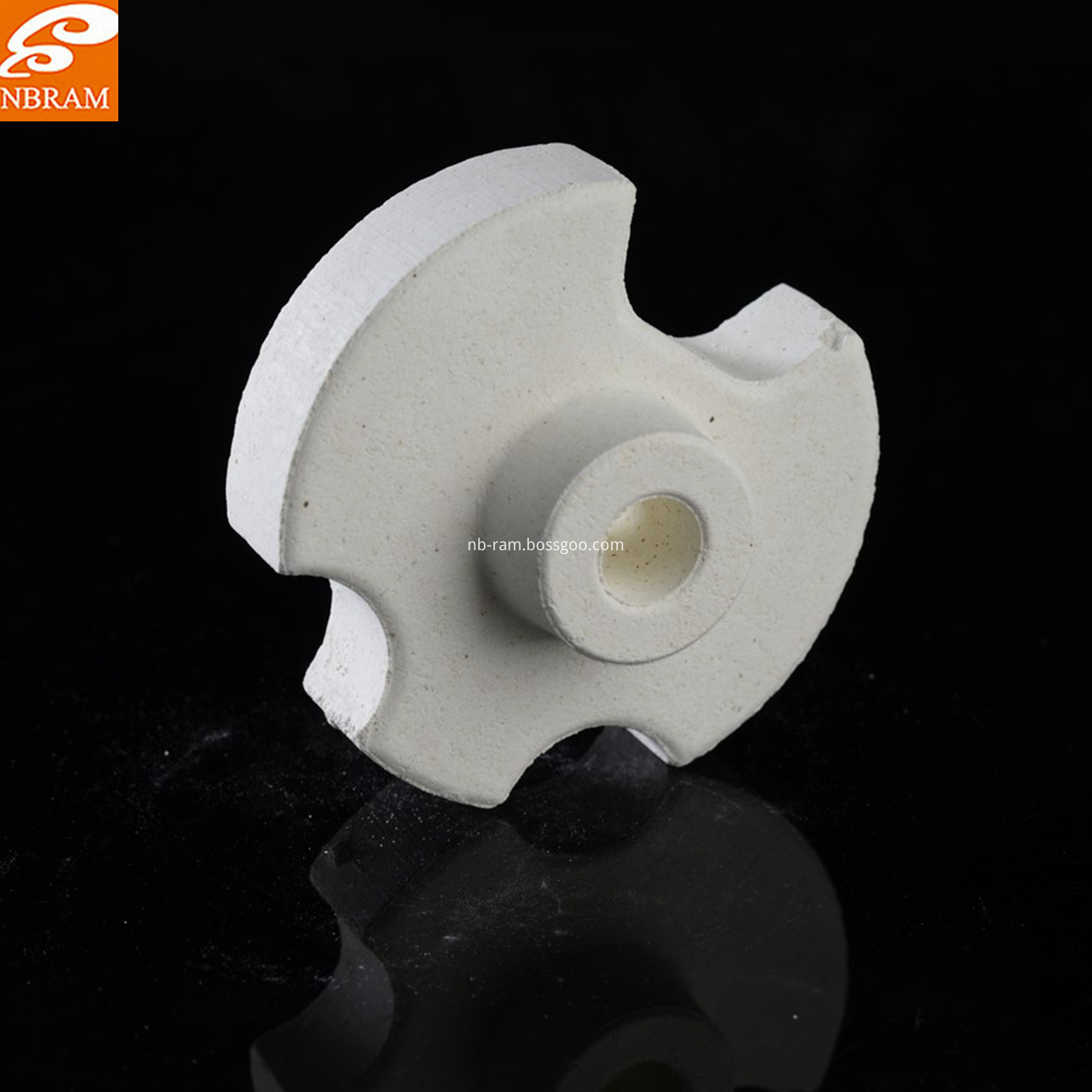

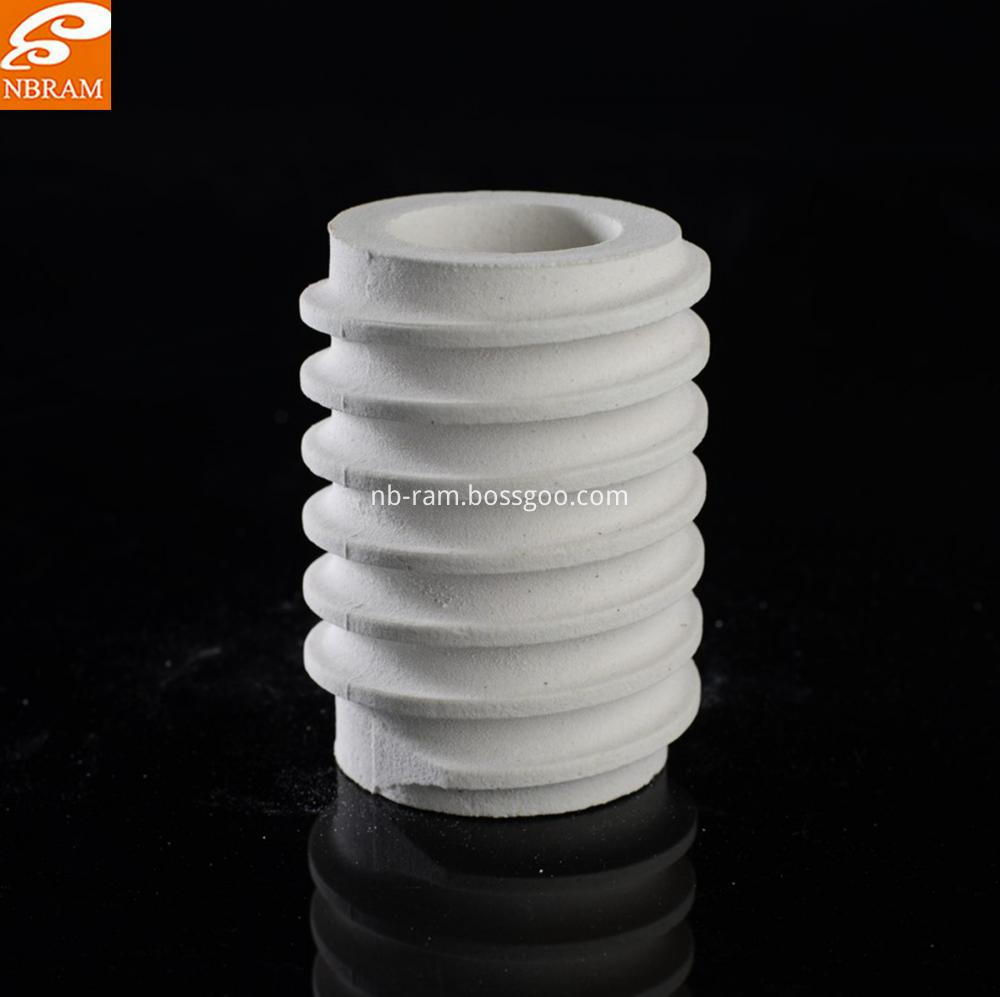

Refractory mullite ceramic parts threaded rods

Refractory mullite ceramic parts threaded rods

    Payment Type: L/C,T/T,D/P,Paypal
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 14 Days
    Packaging: Box In strong cartons,on exporting pallet
    Productivity: 100000
    Brand: NBRAM
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 100000
    Certificate: UL
    Port: Shanghai or Ningbo

Basic Info

Model No.: NBR

Product Description


1. Material: Mullite

Description
1. The product is sintered under high temperature with high- purity raw materials and advanced production technologies.
2.High pressive strength.
3. High temperature resistance as well as thermal shock resistance.
4. It is widely used in the lining of medium-high temperature kilns.

Applications

Corundum-mullite refractory material can be used in linings or heat-insulating materials of the industries, such as ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns, etc.


Name

Alumina

Dense Cordierite

Porous Cordierite

Cordierite-Mullite

Mullite

Corundum mullite

Density(g/cm3)

2.0~2.3

2.1 ~2.5

1.5 ~1.9

1.8~2.3

2.0 ~2.5

2.3 ~2.7

Coefficient of heat expansion(×10-6K-1)(20~800°C)

5

3.5

3.0

3.5

5

6

Specific Heat (J/Kg.K)(20~1000°C)

900~1150

900~1100

900~1100

900~1150

1000~1150

1100~1300

Thermal Conductivity (W/m.k) (20~1000°C)

1.5~2.0

1.5~2.5

1.2~1.8

1.5~2.0

1.5~2.0

1.5~2.5

Impact Thermal Resistance(°C/min)

300

300

350

350

350

300

Max. Working Tem.(°C)

1350

1300

1300

1320

1450

1550

Water absorption(%)

15-25

2

15~25

15 ~25

15~25

15 ~25

Compressive strength(MPa)

28

28

25

25

28

30

Chemical composition (%)

Al2O3

55 ~65

25 ~38

28 ~38

40~52

60 ~70

70 ~80

SiO2

25~35

50 ~60

45 ~55

45 ~55

25 ~35

15 ~25

MgO

1~3

5 ~10

11 ~14

7~9

0 ~1

0 ~2

others

<5

<5

<5

<5

<5

<5

2. Feature:

1). low thermal expansion
2). large specific heat capacity
3). high specific surface area
4). low pressure drop
5). small thermal resistance
6). good thermal conductivity
7). good heat-shock resisting ability

3. Application:

1)Electric appliance industry

2)Automotive industry

3)Mechanical industry

4)Engineer industry

Mullite5Mullite 3
